What do I need to consider?
-
Size
The first thing you’ll want to consider before printing it’s the build volume.
For a single piece print the maximum volume is:
X: 14.336cm (5.64in)
Y: 8.96cm (3.52in)
Z: 17.5cm (6.89in)We also recommend to leave a margin of 0.5~0.7cm in all directions for an optimal print.
-
File
You can prepare your files in the software of your preference.
Just send a clean model in any of the supported formats with the appropriate scale and we’ll take care of the rest
Supported files: .stl, .ctb, .obj. or .ftl
If you want to learn more about file preparation click here*.
*Page currently under construction.
-
Material
Choose the type of resin that fits your project the best:
· Standard (Elegoo ABS-Like 3.0) Grey, Black, White, Transparent, Color.
· Flexible Transparent (Siraya Tech Tenacious Clear)
· Elastic Bio-Compatible Transparent (3DMaterials SuperElastic)
· Combined (Standard + Flexible)
· Other/Special (on request) -
Quantity
When ordering 3D prints have in mind that the minimum sale due to electricity and time is $80.°° MXN which is why if you are ordering small pieces it is recommended to request more than one.
Orders of multiple copies of the same piece can apply for a wholesale discount starting from 5 pieces if the individual cost is above $90.°° MXN or above 10 pieces if the individual cost is above $30.°° MXN.

What to consider for a laser cut or engrave?
-
Size

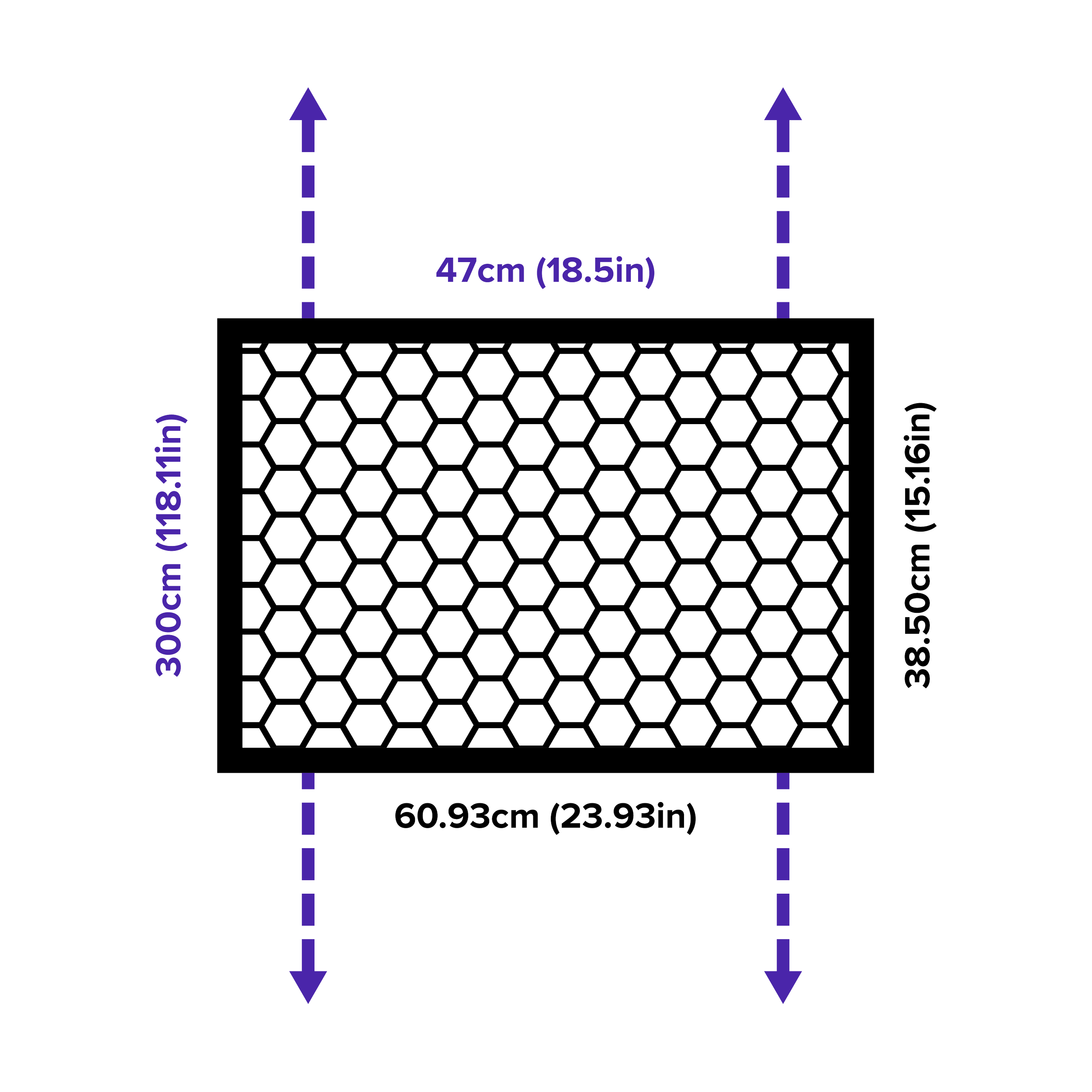

The first thing you will want to consider before any cut or engrave is the work area. There are 2 work areas:
Standard: 60.93cm (23.93in) × 38.50cm (15.16in)
Extended: 47cm (18.5in) × 300cm (118.11in)We recommend leaving a margin of at least 1cm in all directions for an optimal work.
-
File
You can prepare your files in the software of your choosing.
Just send a clean vector file in any of the supported formats with the correct scale and well handle the rest.
Supported formats: .svg, .ai, .eps y .xcs.
-
Material
Next are the materials we are able to work with as well as their options. It is indicated in parenthesis the maximum thickness at which the material can be cut, after that it can only be engraved.
CUT AND ENGRAVE
MDF (1cm), triplay (1cm), boards (1cm), opaque acrylic (6mm), cardboard (1cm), vinyl (3mm), leather (3mm), foamboard (3cm), EVA foam (3cm), woods (3mm).
JUST ENGRAVE: Transparent acrylic, crystal, metal, marble, stone.
-
Quantity
When ordering laser cuts or engraves have in mind that the minimum sale due to electricity and time is $80.°° MXN which is why if you are ordering small pieces it is recommended to request more than one.
Orders of multiple copies of the same piece can apply for a wholesale discount starting from 5 pieces if the individual cost is above $90.°° MXN or above 10 pieces if the individual cost is above $30.°° MXN.

Our Services
-
3D Printing (MSLA)
By using state-of-the-art high resolution MSLA printers, Nexfaria prints can achieve a precision of 0.00125mm in the Z axis with a layer height of 0.01-0.2mm and a resolution of 0.035mm in the X and Y axis.
Choose between a wide selection of resins: Standard (Elegoo ABS-Like 3.0), Flexible Transparent (Siraya Tech Tenacious Clear), Elastic Bio-Compatible Transparent (3DMaterials SuperElastic), Combined (Estándar + Flexible), Other/Special (on request).
Masked Stereolithography Apparatus or MSLA printing allows for extremely high detail accuracy and faster printing times compared to Fused Deposition Modeling (FDM) 3D Printers.
-
Laser Cutting and Engraving
Our 20W diode laser cutter has a base working area of 60.93cm (23.93in) by 38.50cm (15.16cm) and an extended working area of 47cm (18.5in) by 300cm (118.11in). It is also capable of engraving on curved surfaces and cylinders.
It is capable of working with the following materials:
Cutting and Engraving: MDF, triplay, boards, cardboard, opaque acrylic, vinyl, leather, foamboard.
Only engraving: Transparent acrylic, crystal, steel, marble, stone.
-
Mold Creation & Casting
Whether you are planning on expediting your production process or just want to make a proof of concept, having an original mold can help you mass produce multiple copies of your original product.
Materials available: Silicone rubber, Resin and Latex.
To begin a personalized mold creation session please contact us.
-
Design and Consultancy
Great projects require specialized design; our team can accompany and advice your process to ensure the best results for your project, whether it is a product, prototype, service, or a unique creation.
We specialize in graphic design, polymer working, mold and casting, 3D design, photography and visual communication.
-
3D Printing (FDM)*
*COMING SOON
FDM or Fused Deposition Modeling 3D Printers, work by extruding thermoplastic filaments through a heated nozzle layer by layer. While less precise than MSLA printers in terms of details, FDM 3D printers are well-suited for bigger sized parts and basic proof-of-concept models with lower-cost materials.
We are still finishing up the necessary preparations to offer you this service; please check back later or subscribe to our newsletter to find out when this service is coming live.
-
CNC*
*COMING SOON
Computer Numerical Control commonly known as CNC is a machine-tool automation system that allows for a precise control for cutting, engraving and sanding in a 3D space over a diverse array of materials such as wood, polymers and metals.
We are still finishing up the necessary preparations to offer you this service; please check back later or subscribe to our newsletter to find out when this service is coming live.
